Electric Motorized Sports Hall Divider Curtain with Customized Size and 7.5 meters/minute Lifting Speed

Electric Motorized Sports Hall Divider Curtain with Customized Size and 7.5 meters/minute Lifting Speed

Electric Motorized Sports Hall Divider Curtain with Customized Size and 7.5 meters/minute Lifting Speed

Merknaam: Flyon, Flyon
Modelnummer: 7,5 meter / minuut
MOQ: 500
Prijs: $42.90-45.90
Gedetailleerde informatie
Productomschrijving
Gedetailleerde informatie
Plaats van herkomst:
China
Hefsnelheid:
7,5 meter / minuut
materiaal:
Mesh/vinyl
Motortype:
buismotor
Motorspanning:
220 V AC
Motortorsie:
100 Nm
Motorfase:
Eenfasige
Motorische diameter:
3 voet.
Stapelafmeting:
50 cm
Maximale lengte:
20 m
Maximale oppervlakte:
125 m²
Bedrijfsmodus:
Sleutelschakelaar, draadloze afstandsbediening
Bescherming tegen overbelasting:
Automatische thermische reset
Stof opties:
Effen, gaas, stevig en gaas
Onderste buis:
Gewatteerd
Naadtype:
Horizontaal
Markeren:

Electric Motorized Sports Hall Divider Curtain

,

Customized Size Dividing Curtain

,

7.5 meters/minute Lifting Speed Roll up Divider Curtain

Productomschrijving
Electric Motorized Sports Hall Divider Curtains

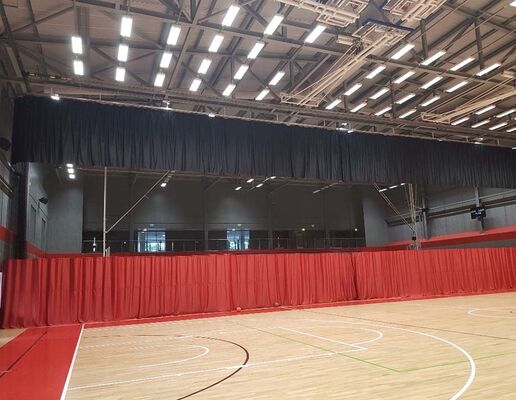

Electric Motorized Sports Hall Divider Curtain with Customized Size and 7.5 meters/minute Lifting Speed 0
The Center Roll Divider features an innovative overhead design for gymnasiums, eliminating traditional hoist cables, straps, and overhead support rollers. This system provides minimal stack height for maximum space utilization.
As the aluminum drive tube rotates, it smoothly moves the curtain upward, rolling both top and bottom sections compactly toward the ceiling. This design eliminates common wear points found in other divider systems and enables the Center-Roll to operate at twice the speed of standard curtains.
The assembly operates with minimal noise and includes automatic overheating protection. Permanently lubricated components ensure maintenance-free operation. When mounted directly to roof structures, this divider maintains a stack dimension within 50cm of the ceiling for optimal clearance.
The system achieves fast folding action at 7.5 meters per minute and is available in solid, mesh, or combination configurations.
Product Specifications
Item Value
Place of Origin China
Product Name Sports Hall Dividing Curtains
Color Customizable
Brand Flyon
Material High-strength polyester fiber or glass fiber fabric with PVC coating
Suitable Places Gymnasium, schools, basketball courts
Motor System

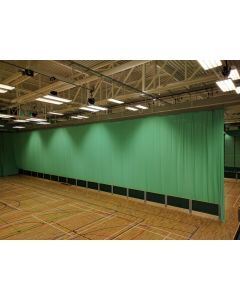

Electric Motorized Sports Hall Divider Curtain with Customized Size and 7.5 meters/minute Lifting Speed 1
Utilizes 100 Nm, 220 V AC tubular motors with 3-foot diameter. The tubular-type motor (220V, single-phase) includes gear reducer and brake mechanism concealed within the horizontal batten tube. Motor features up/down push-button limit switches and automatic reset thermal overload protection.
Motor Configuration

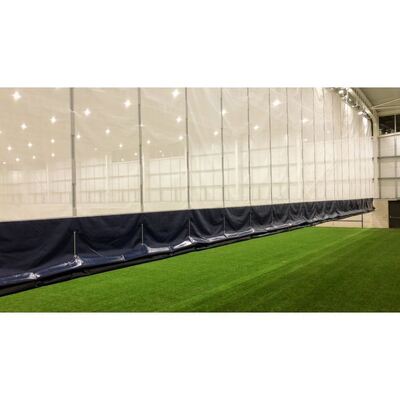

Electric Motorized Sports Hall Divider Curtain with Customized Size and 7.5 meters/minute Lifting Speed 2
Curtains up to 125 m² or 20 meters long utilize single motor operation. Larger curtains employ two synchronized motors for consistent performance. Standard operation includes key switch control with optional wireless remote capability.
Performance Specifications

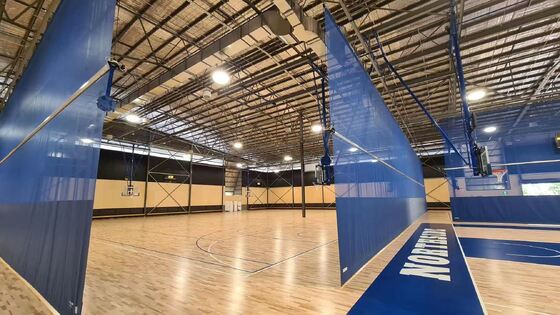

Electric Motorized Sports Hall Divider Curtain with Customized Size and 7.5 meters/minute Lifting Speed 3
Typical stacking dimension is approximately 50 cm. Curtain raises or lowers at a rate of approximately 7.5 meters per minute for efficient operation.
Available Configurations
Electric Motorized Sports Hall Divider Curtain with Customized Size and 7.5 meters/minute Lifting Speed 4
Available in wide variety of vinyl and mesh colors
Solid and Mesh: Combination with padded bottom tube
All Solid: Complete solid construction with padded bottom tube
All Mesh: Full mesh design with padded bottom tube
Construction Features
Electric Motorized Sports Hall Divider Curtain with Customized Size and 7.5 meters/minute Lifting Speed 5 Electric Motorized Sports Hall Divider Curtain with Customized Size and 7.5 meters/minute Lifting Speed 6
Horizontal seams ensure smooth rolling action and consistent performance throughout the curtain's operation.
Quality Certifications
Electric Motorized Sports Hall Divider Curtain with Customized Size and 7.5 meters/minute Lifting Speed 7 Electric Motorized Sports Hall Divider Curtain with Customized Size and 7.5 meters/minute Lifting Speed 8 Electric Motorized Sports Hall Divider Curtain with Customized Size and 7.5 meters/minute Lifting Speed 9
Packaging & Shipping
Electric Motorized Sports Hall Divider Curtain with Customized Size and 7.5 meters/minute Lifting Speed 10 Electric Motorized Sports Hall Divider Curtain with Customized Size and 7.5 meters/minute Lifting Speed 11 Electric Motorized Sports Hall Divider Curtain with Customized Size and 7.5 meters/minute Lifting Speed 12 Electric Motorized Sports Hall Divider Curtain with Customized Size and 7.5 meters/minute Lifting Speed 13 Electric Motorized Sports Hall Divider Curtain with Customized Size and 7.5 meters/minute Lifting Speed 14 Electric Motorized Sports Hall Divider Curtain with Customized Size and 7.5 meters/minute Lifting Speed 15
Company Profile
Fylon has specialized in EPDM and SBR granules production for over ten years, bringing extensive manufacturing expertise to our sports division products.
Electric Motorized Sports Hall Divider Curtain with Customized Size and 7.5 meters/minute Lifting Speed 16 Electric Motorized Sports Hall Divider Curtain with Customized Size and 7.5 meters/minute Lifting Speed 17 Electric Motorized Sports Hall Divider Curtain with Customized Size and 7.5 meters/minute Lifting Speed 18
Frequently Asked Questions
What is your delivery time?
We offer flexible delivery schedules. In-stock items ship within 5 working days, while mass production orders require 25-35 working days.
Can you provide warranty?
Yes! We provide 5 years quality warranty with 10 years backup support for all our products.
Can I get your samples?
Yes! Flyon Sports offers free samples for qualified customers, typically prepared within 3 days.
Do you provide OEM service?
Yes! We provide comprehensive OEM and ODM services to meet your specific requirements.
